Conversion Highlights
Heating and Cooling
- Underfloor heating keeps your feet warm.
- Off-grid air conditioning cools the living space.
Power and Energy
- A solar power system with a 1200W capacity and a Victron Energy controller.
- Batteries: 24v / 200A LifePO4 for storing power.
- Two inverters: One can handle heavy machines with 9000W at its highest and 3000W normally. The other has 1000W for smaller tasks.
Water Systems
- Shower that recycles water, letting you shower for hours with just 10 liters of water.
- 18L Forcali Boiler for hot water.
- A big 400L water tank for storing fresh water.
- A 45Kg LPG tank for gas, with safety features like a gas detector and automatic shut-off.
Temperature and Noise Control
- Custom climate control for managing temperature and humidity.
- The entire area is soundproofed and insulated to keep it quiet and comfortable.
Kitchen
- Thetford Spinflo Triplex stove with 3 burners.
- A fridge and freezer with a total of 138 liters of space.
- Cabinets and drawers that close softly.
- A countertop power socket for using kitchen appliances like toasters, kettles, and microwaves.
Bedroom
- A super comfy bed made from a triple-layered, hypoallergenic memory foam mattress.
- The mattress includes layers for massage, bamboo charcoal for freshness, and high-density foam for support.

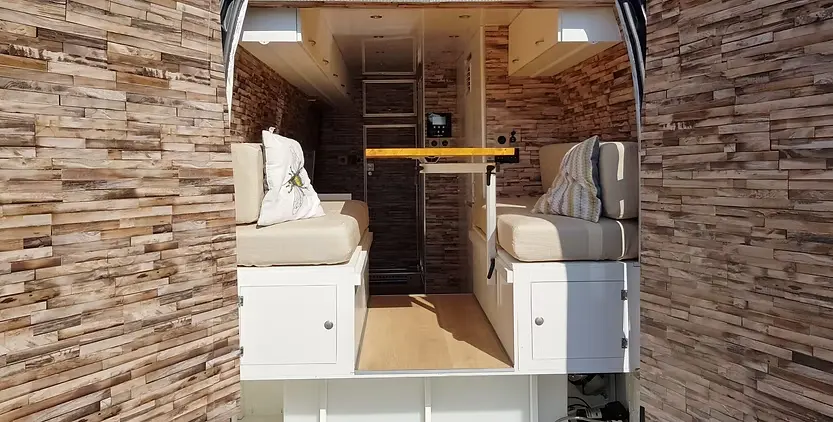

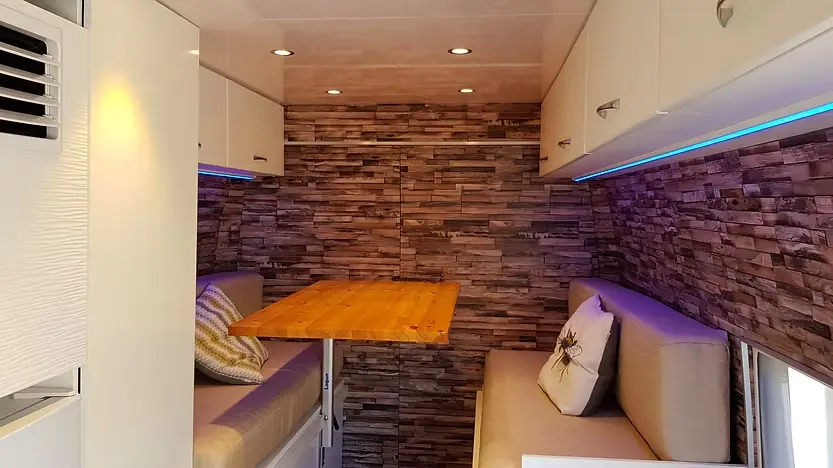

- Couches that face each other can turn into a big comfy bed.

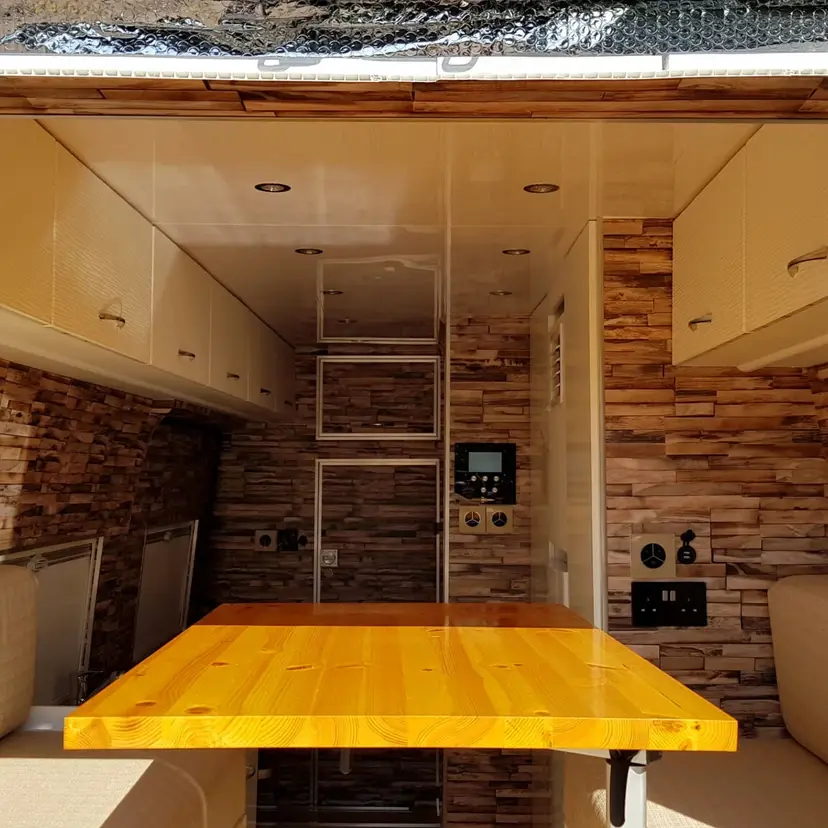

- A special table that can be moved in any direction.
Shower Room

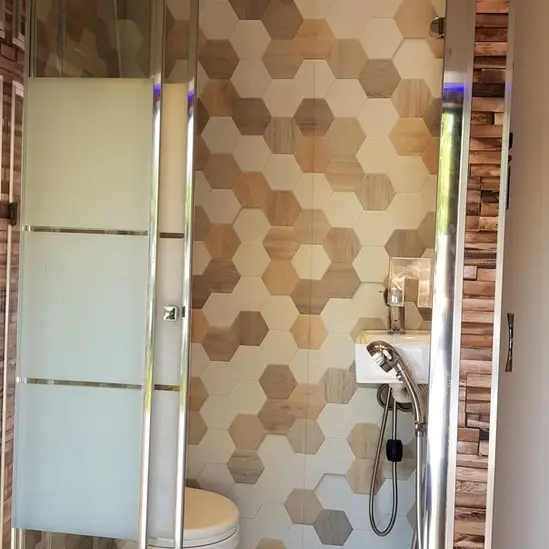

- A large shower room with a system that lets you use the water over and over for long, hot showers.
- Storage tanks for used water and waste.

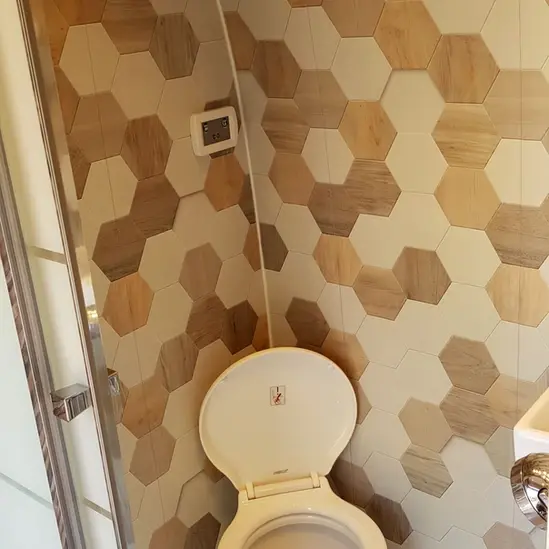

- A modern toilet with easy-to-use controls for hygiene and comfort.
Storage Space
Our camper has tall cabinets mounted on the walls that provide lots of storage space without getting in the way.
- There’s a big wardrobe with hangers and shelves.
- We also have storage space under the bed and sofas.
Insulation
We’ve soundproofed the camper with Silent Coat, so it’s really quiet at night. The solar panels on top also help keep out noise from rain or heat.
- We installed Celotex 50mm insulation from top to bottom.
- A double bubble reflective foil adds more insulation and acts as a vapor barrier.
- The walls are covered with 5mm plywood and 8mm PVC cladding to stop any condensation.
We designed the insulation to cover every bit of metal and stop all condensation.
Cabinetry / Wood Work
We used marine grade, lightweight wood for all the cabinets to keep the camper light and prevent mold.
Solar Power / Electrics
Our camper has a huge 1200W solar power system, so you can travel off-road without worrying about running out of power. A Victron energy solar controller makes sure every bit of sunlight is used and stored in the lithium batteries.
- The 24V 200A battery bank powers everything, even heavy loads like air conditioning or a hair dryer. You can also check and manage the battery system from any smartphone.
Heating
- The 18L Forcali heater gives you hot water and heats the camper on cold days.
- We have a water-heated radiator to warm up the space quickly, and underfloor heating to keep it warm silently at night.
Air Conditioning
The 5000BTU off-grid air conditioner keeps it cool on hot summer days. Good insulation helps maintain the temperature and saves electricity.
Fresh Water Supply
A powerful Whale Pump 18 Ltr 12V 45Psi pumps all the water you need for the bathroom and kitchen.
- The camper holds 400 liters of fresh water, so you can enjoy long stays in nature.
After a year of hard work, we’re really happy with how it turned out.
You can see more pictures and videos of the build on Instagram: https://www.instagram.com/van.forlife
Price: £48,500
Contact: gabriel.gavrilescu@ymail.com
Source: Quirky Campers
